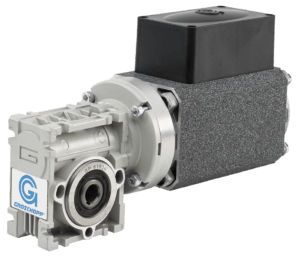

AC Right Angle Gearmotors

Groschopp’s AC Right Angle gearmotors are part of our AC gearmotor family and are ideal for a variety of packaging, conveyor, and food & beverage applications. The hollow bore design easily allows for a corner turn with optional dual output. We offer 12 ratios ranging from 5:1 to 100:1, with non-backdrivable ratios 30:1 and higher. Our AC Right Angle gearmotors are designed for continuous operation, and the worm gearbox comes with several mounting plate options. You can also check out our full gearbox lineup if you want to see all the reducer styles we offer.

Features

  • 1/20 – 3/4 HP
  • 115 & 230 VAC
  • 13 –  582 RPM
  • 2.5 – 437 in-lb rated torque
  • 50Hz & 60Hz
  • Frame size 65, 80, 90, 100 mm
  • Single or three phase
  • Inverter duty standard
  • Totally enclosed fan-cooled (TEFC) or totally enclosed non-vent (TENV)
  • 5:1 – 100:1 standard ratios

Showing 1–25 of 659

Product # Model # Speed
(RPM)		 Torque
(in-lb)		 Motor Power
(HP)
74691 AC8060FC-RA2605T 298 23.40 0.1104
74692 AC8060FC-RA2610T 149 49.40 0.1165
74693 AC8060FC-RA2620T 75 80.40 0.0963
74694 AC8060FC-RA3007T 198 37.50 0.1179
74695 AC8060FC-RA3010T 149 46.60 0.1101
74696 AC8060FC-RA3015T 99 72.10 0.1134
74697 AC8060FC-RA3020T 74 90.80 0.1072
74698 AC8060FC-RA3025T 60 103.30 0.0975
74699 AC8060FC-RA3030T 50 116.70 0.0918
74700 AC8060FC-RA3040T 37 154.70 0.0913
74701 AC8060FC-RA4007T 198 31.60 0.0995
74702 AC8060FC-RA4010T 149 43.30 0.1022
74703 AC8060FC-RA4015T 99 59.50 0.0936
74704 AC8060FC-RA4020T 74 80.50 0.0951
74705 AC8060FC-RA4025T 60 103.60 0.0979
74706 AC8060FC-RA4030T 50 97.60 0.0768
74707 AC8060FC-RA4040T 37 134.70 0.0795
74708 AC8060FC-RA4050T 30 146.00 0.0696
74709 AC8060FC-RA4060T 26 103.70 0.0434
74710 AC8060FC-RA4080T 20 134.90 0.0423
74711 AC8060FC-RA40100T 15 245.50 0.0585
75503 AC9060FC-RA3025T 61 94.30 0.0913
75504 AC9060FC-RA40100T 15 230.00 0.0556
75505 AC9060FC-RA5060T 25 111.30 0.0449
76349 AC10080NV-RA3007T 209 50.50 0.1675
1 2 ... 27 NEXT
