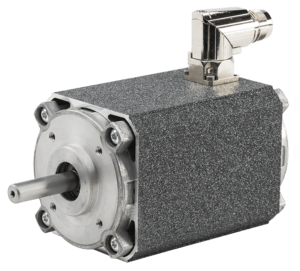

Brushless DC Motors

Our brushless DC motors are part of our fractional horsepower motor lineup and use electronic commutation to eliminate the need for maintenance. With high power density and low noise, our BLDC motors are ideal for security, medical, and other precision applications. We offer BLDC motors in both 24V and 115V options to support a wide range of system requirements. If you need an integrated solution, you can also check out our BLDC gearmotors. For speed control, take a look at our variable speed brushless DC controls designed to match our motor performance.

Features

  • 0.08 to 0.43 HP
  • 24 and 163 (115) VDC
  • 2300 – 3800 RPM
  • 1.6 – 10.8 in-lb rated torque
  • Frame size 65, 80, 100 mm
  • 20,000+ hours life
  • Variable speed operation
  • High efficiency up to 85%
  • High starting torque
  • No maintenance
  • High power density
  • Totally enclosed, non-vent (TENV)

Showing 1–9 of 9

Product # Model # Speed
(RPM)		 Torque
(in-lb)		 Motor Power
(HP)
7120 BL6520 2600 1.90 0.0771
7121 BL6540 2900 3.30 0.1489
7122 BL6560 2900 4.40 0.2022
7103 BL6520 3700 1.70 0.0966
7104 BL6540 3800 3.20 0.1908
7105 BL6560 3800 4.70 0.2850
7200 BL8020 2500 3.60 0.1413
7201 BL8040 2500 6.90 0.2727
7202 BL8060 2500 10.80 0.4289
1
