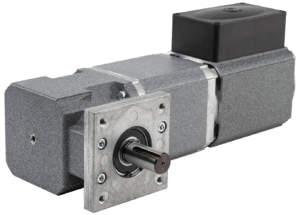

AC Bevel Gear Motors

Groschopp’s AC Bevel gearmotors are part of our AC gearmotor family and provide a high-efficiency right-angle solution for a variety of packaging, conveyor, and food & beverage applications. The hollow bore design easily allows for a corner turn with optional dual output. We offer 12 ratios ranging from 5:1 to 100:1, all of which are back-drivable. Our AC Bevel gearmotors are designed for continuous operation, and the bevel gearbox comes with several mounting plate options. You can also check out our full gearbox lineup if you want to see all the reducer styles we offer.

Features

  • 1/20 – 3/4 HP
  • 115 & 230 VAC
  • 13 –  582 RPM
  • 2.5 – 437 in-lb rated torque
  • 50Hz & 60Hz
  • Frame size 65, 80, 90, 100 mm
  • Single or three phase
  • Inverter duty standard
  • Totally enclosed fan-cooled (TEFC) or totally enclosed non-vent (TENV)
  • 5:1 – 100:1 standard ratios

Showing 1–25 of 406

Product # Model # Speed
(RPM)		 Torque
(in-lb)		 Motor Power
(HP)
87702 AC8040FC-RP731000 3 885.00 0.0442
87708 AC8040NV-RP731000 2 885.00 0.0217
87710 AC8060NV-RP731000 3 885.00 0.0455
87711 AC9060NV-RP731000 3 885.00 0.0486
87713 AC9060NV-RP731000 2 885.00 0.0239
66359 AC8060FC-RP7305 600 14.40 0.1374
66360 AC8060FC-RP73010 300 31.90 0.1521
66361 AC8060FC-RP73020 150 65.30 0.1555
66362 AC8060FC-RP73030 100 106.70 0.1694
66363 AC8060FC-RP73040 75 139.10 0.1656
66364 AC8060FC-RP73061 49 220.10 0.1718
66365 AC8060FC-RP73090 33 304.90 0.1614
66366 AC8060FC-RP73120 25 395.90 0.1571
66367 AC8060FC-RP73160 19 521.90 0.1554
66368 AC8060FC-RP73246 13 606.00 0.1228
66372 AC8040NV-RP7305 301 5.20 0.0249
66373 AC8040NV-RP73010 151 11.70 0.0279
66374 AC8040NV-RP73020 75 22.40 0.0268
66375 AC8040NV-RP73030 50 32.40 0.0258
66376 AC8040NV-RP73040 38 60.00 0.0359
66377 AC8040NV-RP73061 25 92.30 0.0362
66378 AC8040NV-RP73090 17 121.30 0.0322
66379 AC8040NV-RP73120 13 156.50 0.0312
66380 AC8040NV-RP73160 9 234.40 0.0350
66381 AC8040NV-RP73184 8 219.80 0.0286
1 2 ... 17 NEXT
