Brushless Right Angle Gearmotors

Groschopp’s Brushless DC Right Angle gearmotors are part of our BLDC gearmotor lineup and are ideal for applications that require a non-backdrivable motor. The hollow bore design of the reducer easily allows for a corner turn while still maintaining a small frame size. Our right angle worm gear reducers come with an optional dual shaft and several mounting plate configurations, making them ideal for a variety of continuous and intermittent duty applications. We offer 12 ratios ranging from 5:1 to 100:1, with non-backdrivable ratios 30:1 and higher. You can also check out our full gearbox lineup if you want to see all the reducer styles we offer.

Features

  • 1/50 to 1/6 HP
  • 24 and 163 VDC
  • 25 – 550 RPM
  • 3 – 250 in-lb rated torque
  • Frame size 65, 80 mm
  • 5:1 – 100:1 standard ratios
  • 20,000+ hours life
  • Variable speed operation
  • Totally enclosed, non-vent (TENV)

Showing 1–5 of 5

Product # Model # Speed
(RPM)		 Torque
(in-lb)		 Motor Power
(HP)

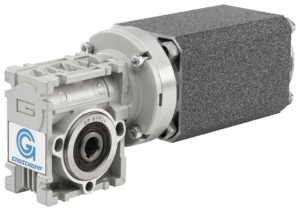

47100 BL6520-RA2605T 523 4.00 0.0334
47101 BL6520-RA3015T 174 14.40 0.0397
47102 BL6520-RA3080T 33 42.20 0.0219
47103 BL6540-RA3040T 72 65.60 0.0752
47104 BL6560-RA3015T 194 44.20 0.1361
1
