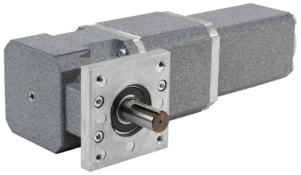

Brushless Right Angle Planetary Gearmotors

Groschopp’s Brushless DC Right Angle Bevel gearmotors are part of our BLDC gearmotor lineup and require no maintenance while providing an efficient right-angle configuration. Our BLDC bevel gearmotors are available in 18 ratio options ranging from 5:1 to 1000:1. These gear reducers are back-drivable at all ratios and offer higher efficiency and smoother output torque than our right-angle worm gearboxes. You can also check out our full gearbox lineup if you want to see all the reducer styles we offer.

Features

  • 1/37 to 1/6 HP
  • 4 and 163 VDC
  • 2.6 – 630 RPM
  • 3 – 885 in-lb rated torque
  • Frame size 65, 80 mm
  • 5:1 – 1000:1 standard ratios
  • 20,000+ hours life
  • Variable speed operation
  • Totally enclosed, non-vent (TENV)

Showing 1–25 of 66

Product # Model # Speed
(RPM)		 Torque
(in-lb)		 Motor Power
(HP)
61567 BL6540-RP7305 578 8.60 0.0790
61568 BL6540-RP73010 289 19.20 0.0882
61569 BL6540-RP73020 144 37.70 0.0863
61570 BL6540-RP73030 96 60.30 0.0922
61571 BL6540-RP73040 72 89.30 0.1023
61572 BL6540-RP73061 47 142.20 0.1068
61573 BL6540-RP73090 32 191.50 0.0975
61574 BL6540-RP73120 24 250.00 0.0955
61575 BL6540-RP73160 18 342.90 0.0982
61576 BL6540-RP73184 16 350.20 0.0872
61579 BL6560-RP73010 291 28.90 0.1334
61580 BL6560-RP73030 97 96.10 0.1480
61581 BL6560-RP73040 73 127.10 0.1468
87716 BL6520-RP731000 3 673.90 0.0279
61582 BL6560-RP73061 48 201.70 0.1528
61583 BL6560-RP73090 32 278.40 0.1429
61584 BL6560-RP73120 24 361.90 0.1393
61585 BL6560-RP73160 18 478.80 0.1383
87541 BL6520-RP73100 26 92.20 0.0382
87544 BL6540-RP73100 29 213.20 0.0977
87545 BL6560-RP73100 29 308.10 0.1424
87610 BL6520-RP73300 9 3.80 0.0005
87612 BL6540-RP73300 10 349.10 0.0533
87613 BL6560-RP73300 10 620.40 0.0955
87654 BL6520-RP73400 7 218.60 0.0227
1 2 3 NEXT
