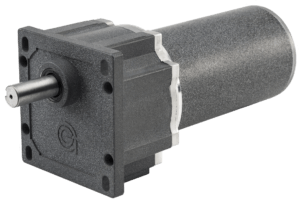

DC Parallel Shaft Gearmotors

Groschopp’s DC parallel shaft gearmotors are part of our DC gear motor family and offer a cost-effective option for low torque applications. These parallel shaft gearmotors are designed for both continuous and intermittent duty operation, featuring a gearbox configuration that ensures high efficiency and excellent heat dissipation. The gear reduction offered by our parallel shaft gearmotors enhances torque output while reducing speed, making them ideal for high-speed and low torque applications like pumps. With various gear ratios available, our DC motors combined with parallel shaft gear reducers deliver optimal performance for your specific needs. Additionally, our DC parallel shaft gearmotors serve as a convenient drop-in replacement for most small parallel shaft gearmotors, ensuring versatility and ease of integration.

Customizing our parallel shaft gearmotors is always an option when it comes to Groschopp!

Features of DC Parallel Shaft Gearmotors

  • 1/43 to 3/8 HP
  • 12, 24, 90, 130, 180 VDC, 115 FWR
  • 5 – 550 RPM
  • 4.9 – 322 in-lb rated torque
  • Frame Size 60, 80, 108 mm
  • 5:1 – 320:1 standard ratios
  • Standard brush life of 2000+ hours (varies by application)

Showing 1–25 of 961

Product # Model # Speed
(RPM)		 Torque
(in-lb)		 Motor Power
(HP)
87954 PM8014-PS2153 18 197.20 0.0551
87955 PM8014-PS2168 14 225.00 0.0502
87956 PM8014-PS2179 13 225.00 0.0459
87957 PM8014-PS2113 179 47.00 0.1335
87958 PM8014-PS2126 90 82.20 0.1169
87959 PM8014-PS2145 52 124.90 0.1026
87960 PM8014-PS2153 44 155.20 0.1083
56250 PM8018-PS2305 196 27.50 0.0857
87961 PM8014-PS2168 34 188.00 0.1022
56251 PM8018-PS2310 98 58.50 0.0912
87962 PM8014-PS2179 30 225.00 0.1058
56252 PM8018-PS2315 65 88.20 0.0916
56253 PM8018-PS2320 49 116.50 0.0908
56254 PM8018-PS2330 33 174.30 0.0905
56255 PM8018-PS2340 25 229.30 0.0893
56256 PM8018-PS2350 20 267.00 0.0843
56257 PM8018-PS2360 17 306.00 0.0823
56258 PM8018-PS2305 450 20.30 0.1448
56259 PM8018-PS2310 225 44.30 0.1582
56260 PM8018-PS2315 150 65.80 0.1567
56261 PM8018-PS2320 113 86.70 0.1547
56262 PM8018-PS2330 75 132.30 0.1575
56263 PM8018-PS2340 56 173.60 0.1549
56264 PM8018-PS2350 45 204.70 0.1461
56265 PM8018-PS2360 38 256.40 0.1526
1 2 ... 39 NEXT
