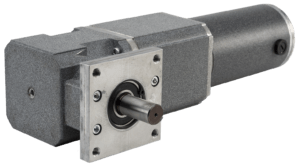

DC Bevel Gear Motors

Our DC bevel gearmotors are part of our DC gearmotor family and are an ideal choice for applications that require high starting torque with an efficient right angle configuration. DC right angle planetary gearmotors allow for back-drivability at all ratios, and with 18 ratio options ranging from 5:1 to 1000:1, we have a solution to fit your needs. You can also check out our full gearbox lineup if you want to see all the reducer styles we offer.

Features

  • 1/125 to 3/8 HP
  • 12, 24, 90, 130, 180VDC,115 FWR
  • .5 – 475 RPM
  • 3.8 – 855 in-lb rated torque
  • Frame Size 60, 80, 108 mm
  • 5:1 – 1000:1 standard ratios
  • Standard brush life of 2000+ hours (varies by application)

Showing 1–25 of 569

Product # Model # Speed
(RPM)		 Torque
(in-lb)		 Motor Power
(HP)
64256 PM10816-RP73061 16 430.60 0.1078
87697 PM6015-RP73614 1 594.80 0.0121
64257 PM10816-RP73090 11 492.00 0.0880
64258 PM10816-RP73120 9 514.00 0.0722
62625 PM6015-RP7305 157 4.60 0.0114
62626 PM6015-RP73010 78 10.30 0.0128
62627 PM6015-RP73015 52 12.00 0.0100
62628 PM6015-RP73020 39 19.70 0.0122
62629 PM6015-RP73030 26 28.30 0.0117
62630 PM6015-RP73040 20 54.60 0.0170
62631 PM6015-RP73061 13 83.00 0.0169
62632 PM6015-RP73090 9 108.00 0.0149
62633 PM6015-RP73120 7 139.50 0.0145
62634 PM6015-RP73160 5 215.60 0.0168
62635 PM6015-RP73184 4 197.50 0.0133
87717 PM6015-RP731000 2 563.10 0.0212
62636 PM6015-RP73246 3 302.60 0.0153
62637 PM6015-RP73377 2 460.80 0.0152
62638 PM6015-RP7305 475 2.80 0.0209
62639 PM6015-RP73010 238 6.50 0.0243
62640 PM6015-RP73015 158 6.60 0.0165
87722 PM6015-RP731000 1 885.00 0.0112
62641 PM6015-RP73020 119 11.90 0.0224
62642 PM6015-RP73030 79 17.90 0.0225
62643 PM6015-RP73040 59 39.30 0.0370
1 2 ... 23 NEXT
